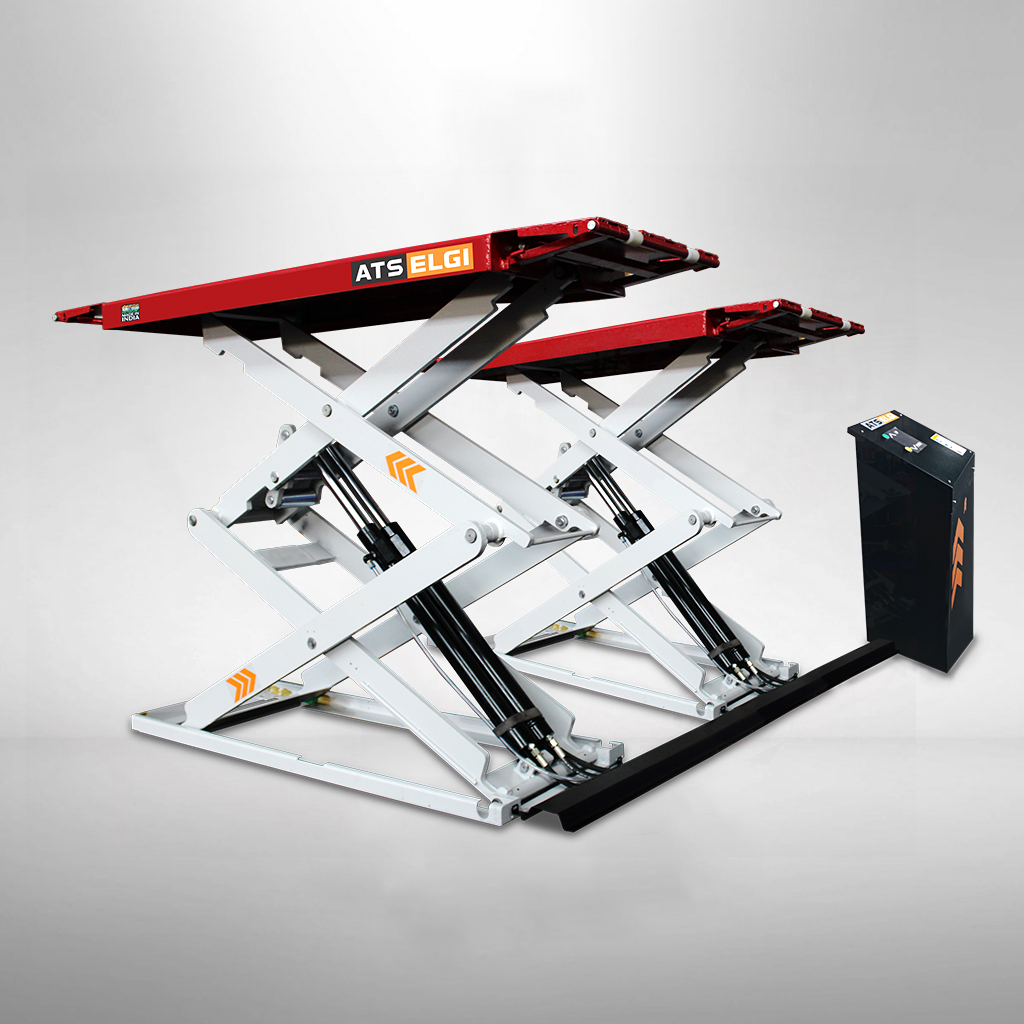

Ideal for Quick Repair Bays and Inspection bays, Wheels Free Double Scissor Lift has a lower footprint and ensures higher productivity.

Model:Wheels Free Double Scissors Lift (On Ground & In Ground)

ApplicationsFeatures & BenefitsSpecificationsCatalogueRequest a Quote
  • Quick inspection bay
  • Wheel Changing
  • Under Chassis Inspection
  • Transmission System Inspection
  • Dual cylinder with Master Slave technology ensures hydraulic synchronization between platforms.
  • Traditional mechanical system with pneumatic release or manual release has been eliminated by introducing hydraulic lock.
  • Velocity fuse has been used for protection against sudden leakage like hose burst.
  • Limit switch for maximum lifting height to avoid motor over run.
  • Manual Lowering through unloading valve – easy lowering even in power is off.
  • Rubber pads are used for lifting the vehicles.
Lifting Capacity 3000 Kgs
Lifting Time 50 sec
Min. Lifting Height 119 mm
Max. Lifting Height 1900 mm
Electric Motor Power rating 2.6 kw
