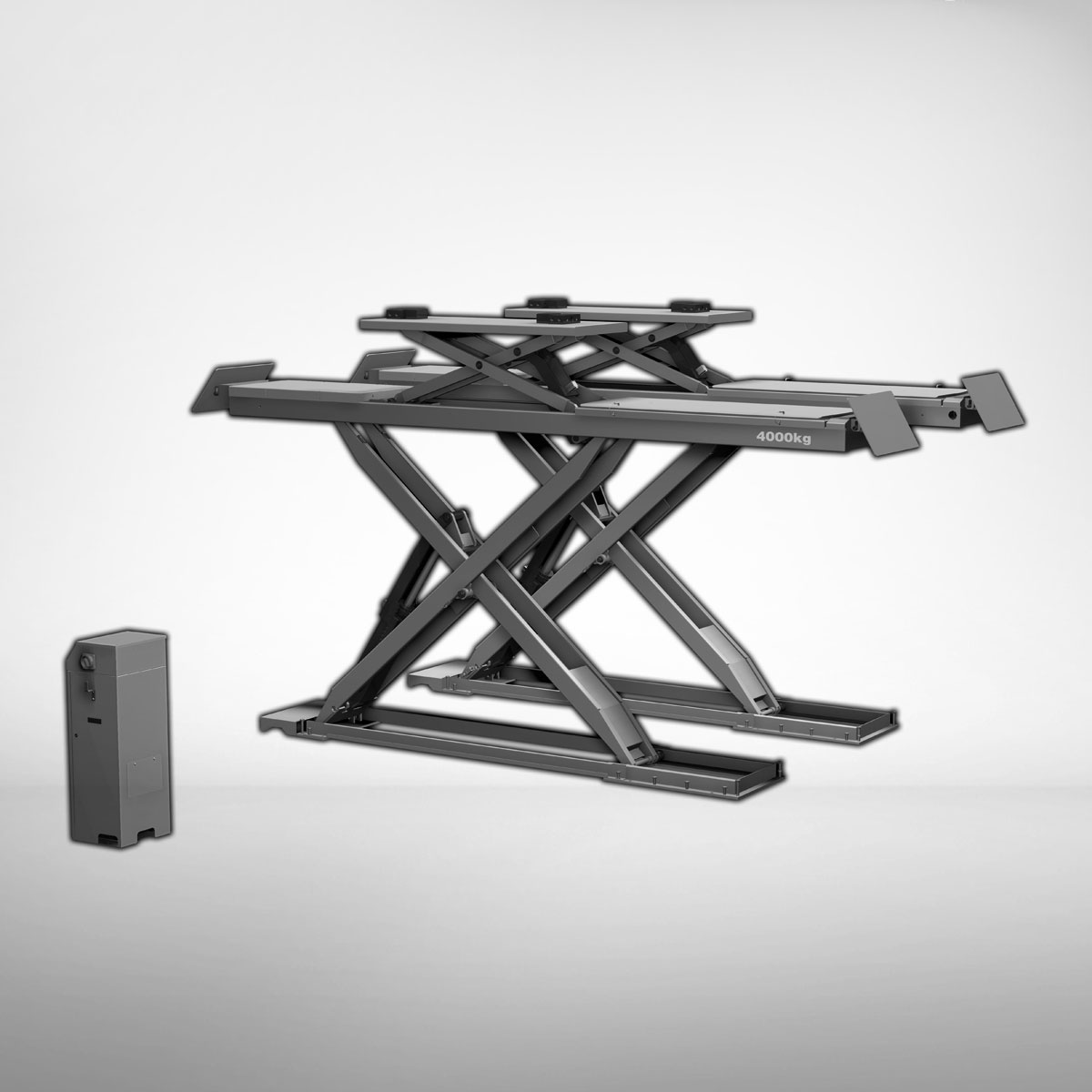

With the lifting capacity of 4 Tons,this lift has been specifically designed to suit all type of wheel alignment operations and to deliver maximum productivity out of your available space. This model supports both on ground & in ground installation options to ensure maximum flexibility of the available workspace.

Model: WASL 4 Ton

ApplicationsFeatures & BenefitsSpecificationsCatalogueRequest a Quote
  • Wheel Alignment
  • Wheel Changing
  • Under Chassis Inspection
  • Transmission System Inspection
  • Ultra-thin structure design, suitable for both ground & underground installation
  • Pressure control safety mechanical lock assures, safety operation
  • Equipped with emergency decline manual pump interface, can bring down vehicle by using manual pump
  • Adopt series synchronous hydraulic pressure loop for better synchronization
  • Safety protection (Lift at “400 mm to ground will have alarm” effectively prevent accidental injury)
Lifting Capacity 4000 Kgs
Lifting Time 120 sec
Min. Lifting Height 210 mm
Max. Lifting Height 1800 mm
Electric Motor Power rating 2.2 KW
