TWO POST HYDRAULIC MULTI UTILITY LIFT

ATS ELGi being market leader in lifts with almost 60% market share, is committed to continuous R & D and product improvements to increase end user productivity and business revenue.

Model: Multi Utility Lift

Product FeaturesAdvantagesSpecificationsCatalogueRequest a Quote

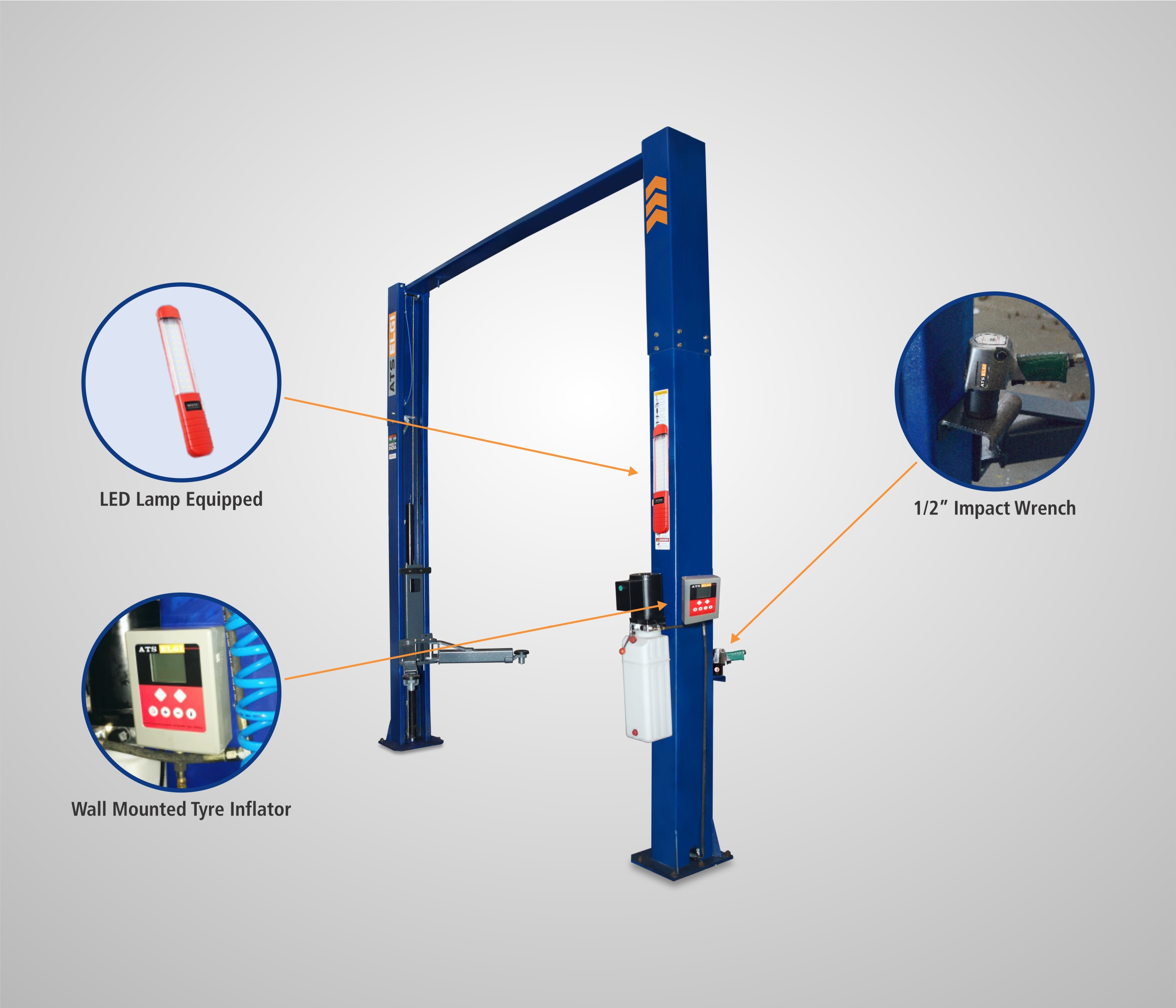

  • Manual release locking system for two sides.
  • LED Lamp- This wireless LED Lamp with magnetic holder is perfect for accessing small engine work and provides easy access in dark areas.
  • Pneumatic Tool with Holder- ½ “Impact wrench suitable for heavier jobs in modern tire and automobile workshops.
  • Wall Mounted tyre inflator- Pre-set economic Air inflator- Wall mounted with supply pressure of 12.5 bar (180 Psi). Single phase operated
  • Base free design makes working beneath the vehicle easy.
  • True symmetric column design
  • Arm restraints on each arm engages when the vehicle is lifted
  • Manual release locking system for two sides
  • LED Lamp- This wireless LED lamp with magnetic holder is perfect for accessing small engine work and provides easy access in dark areas
  • Pneumatic tool holder-  1/2  inch impact wrench suitable for heavier jobs in modern tire and automobile workshops
  • Digital tyre inflator- Pre-set Economic Air inflator – mounted in lift with supply pressure of 12.5 Bar (180 Psi) - Single phase operated.
Lifting Capacity 4000 kgs
Lifting Time (Approx) 55 +/- 5 Sec
Lowering Time (Approx) 45 +/- 5 Sec
Max. Lifting Height (No Load) 1800 mm
Min. Lifting Height (No Load) 115 +/- 10 mm
Drive Through Width 2554 mm
Column Height 3777 mm
Oil Tank Capacity 12 Liters
Motor Power 3 Hp. 3 PH 2850 RPM
Frequency 50 +/- 5%
Power Supply 415 V
Overall Dim (LxWxH) (Approx) 3777 x 3320 x 520 mm
Lowering Mode Manual release Valve
