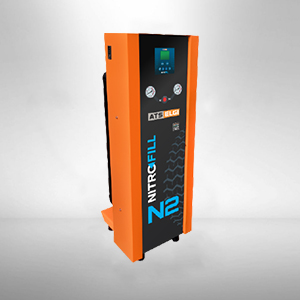

Nitrofill- Nitrogen Inflator

Scope of Supply

ATS ELGI Scope

  • N2 NITROFILL
  • 10 M Hose X 1 with clip on connector.

Customer Scope

  • Over all space required 450x523x1311
  • Level of Floor ±20mm (Machine should be placed firm should not have shake movement)
  • Air Pressure Requirement 7.5 to 10 bar
  • Power Requirement Single phase with earth 230V AC
ApplicationsAdvantageFeatures & BenefitsSpecificationsRequest a Quote
  • Tyre shop
  • Fuel station
  • 2W Workshops
  • 4W Workshops
  • Longer tyre life
  • Oxidation is blocked
  • Nitrogen is a green alternative
  • Reduces the tyre's running temparature
  • Improves the ride quality
  • Increases tyre life
  • Keeps tyre pressures more constant
  • Slows the rate of pressure loss
  • Dosen't react with the tyre and RIM materials
  • Automatic Nitrogen tyre inflating systems
  • Generate Nitrogen by Pressure Swing Adsorption(PSA) technique
  • Nitrogen / Air - dual filling system
  • Integrated storage tank for nitrogen gas
  • High grade filter separation unit
  • Integrated vacuum system for removing air out of tyre before inflating with Nitrogen
  • In built digital counter
  • On demand real time purity indicator
  • Inlet & outlet pressure indicator
S. NO Description Data
1 Power supply (V) 230V / 50Hz
2 Filling media selection mode Nitrogen / Air
3 Tyre pressure setting range (PSI) 07 – 170
4 Resolution (PSI) 1
5 Accuracy 0.5 % full scale range
6 Inlet air pressure (Kg/cm2) 7 - 10
7 Outlet air pressure (Kg/cm2) 5 – 10
8 Cycle end indication – Inflation / deflation Audible and visual end of cycle signals
9 N2 storage tank size (L) 60
10 Inflation Hose System Single Hose
