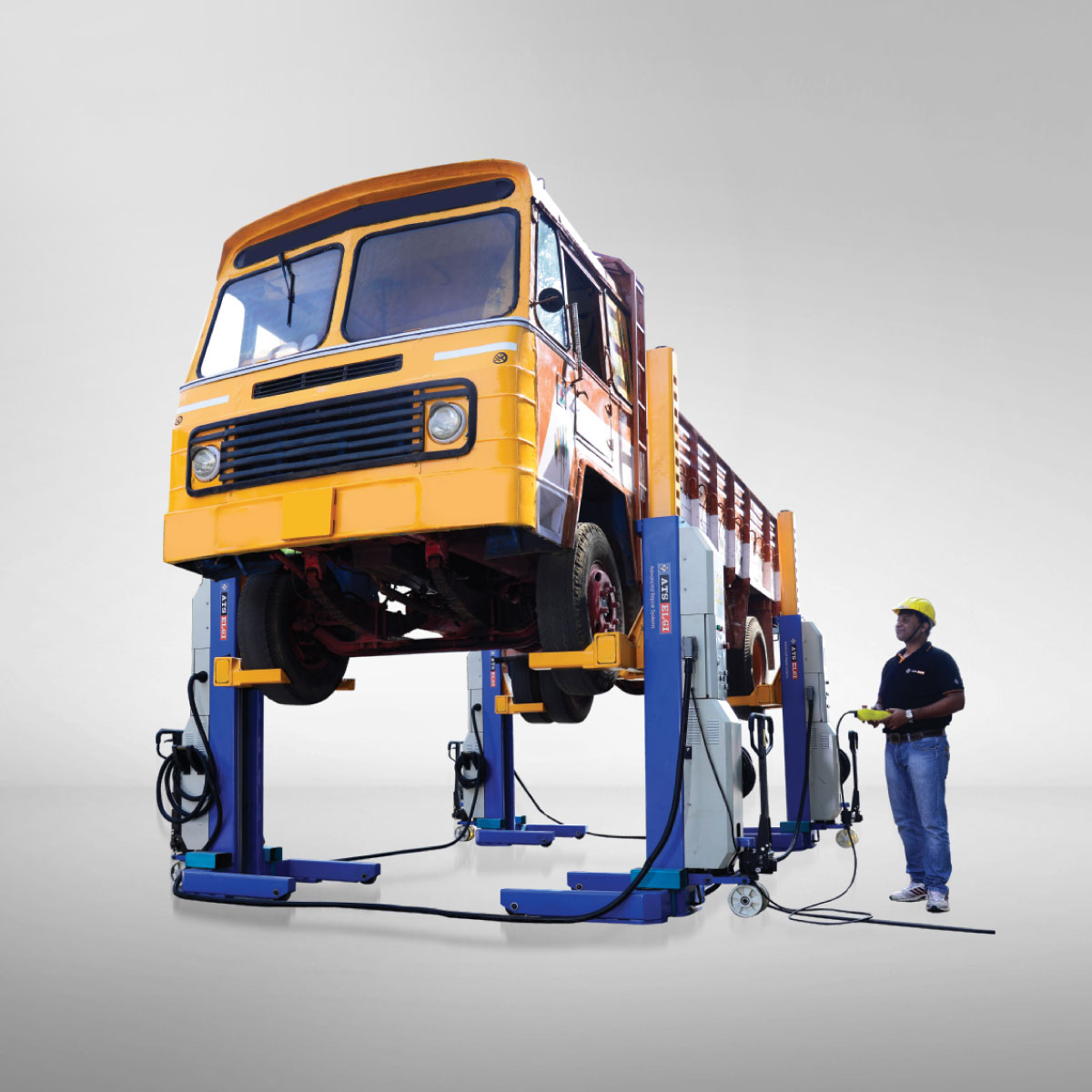

Heavy Duty Mobile Column Lifts are technically advanced Electro-Hydraulic lift suitable for assembling & repair of Heavy Duty Vehicles. Available in various combinations of tonnage and number of columns based on the requirement.

Model : ML4030

ApplicationsFeaturesSpecificationsCatalogueRequest a Quote
  • Full axle repair & replacement
  • Suspension repair or replacement
  • Wheel replacement / Stub Axle repair
  • Engine repair or replacement
  • Waste oil removal
  • Splash proof power supply unit
  • Lifting carriage with fixed wheel engaging forks
  • Unique synchronization system
  • Each column is equipped with a control box & hydraulic pump unit
  • Self error diagnostic functions
  • Equipped with remote control
  • Each column have LCD Display
  • Optional axle stand
Lifting Capacity 7500 Kgs/ column & 5500 kgs/ column
Lifting Time 120 sec
Wheel Size 280 to 580 mm
Max. Lifting Height 1700 mm
Electric Motor Power Rating 2.2 KW/Column
