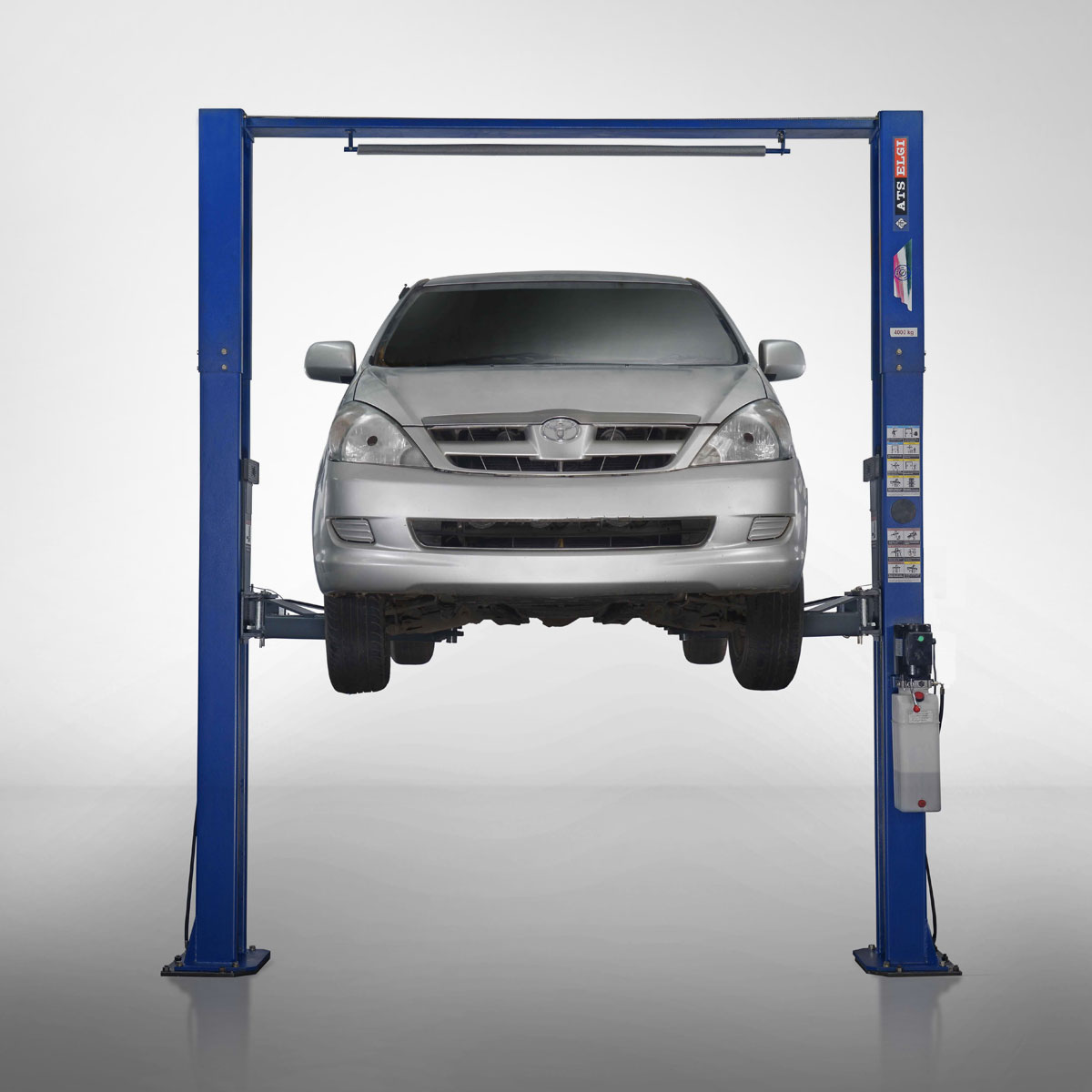

ATS ELGI Electro – Hydraulic Clear Floor with CE Certification complies with the European Standards with respect to safety, health, environment & consumer protection. This hoist is used for lifting vehicles to any comfortable working height up to 6 feet, leaving head room for complete under-chassis access.

Model: TPHL - 4.0 CF E

ApplicationsFeatures & BenefitsSpecificationsCE CertificateCatalogueRequest a Quote
  • Muffler repair
  • Rust - proofing operation
  • Transmission repair
  • Any other repair calling for a wheel free condition
  • Clear floor design- Makes working beneath the vehicle easy
  • Arm resistant on each arm engages when the vehicles is lifted
  • Separate power panel ensures more safety from electrical hazard.Dead man controls system- 24 V DC
  • Equipped with Hose bust valve to prevent damage from hose / crimping end failure
  • Manual release locking system for two sides
  • Two full stroke cylinders- one in each column
  • Rubber pad for door opening protection
  • Telescopic Arm pads for quick and easy vehicle contacts
Lifting Capacity 4000 Kgs
Lifting Time 55 sec
Min. Lifting Height 115 mm
Max. Lifting Height 1800 mm
Motor Power 2.2 KW
