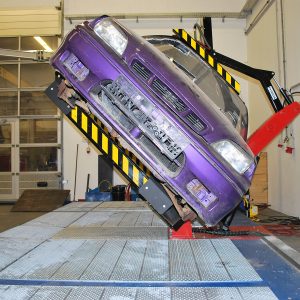

The versatile SEDA Tilting ramp

Quick and easy loading of the vehicle onto the system. Secured by a hydraulic safety arm, the vehicle is ready to turn 90°, in order to help the operator work on the underside of the vehicle easily. This unit offers a safe and efficient dismantling process of ELVs.

An optional mobile platform along with optional dismantling swingarm, offers you more ways to work in a highly professional and industrial way.

BenefitsSpecificationsCatalogueRequest a Quote
  • Hydraulic control system
  • For easy, ergonomic working
  • Optional Mobile platform
  • Additional tools can be easily integrated
  • Rugged and robust
  • Proven SEDA Quality
Control system hydraulic
Loading capacity 3.500 kg
Engine power 1,5 kW
Power supply 400 V
Oil filling quantity 25 litres
Radius swingarm 6 m (2,5/3,5 m)
Dim. Tilting ramp 1.5 x 2.6 x 2.5 m
Dim. Platform 5.8 x 2.3 x 0.3 m
Space required 6.0 x 6.0 x 2.9 m
