MIDTRONICS high-frequency controlled chargers use technology in combination with a SMART SAFE, FAST & SIMPLE.

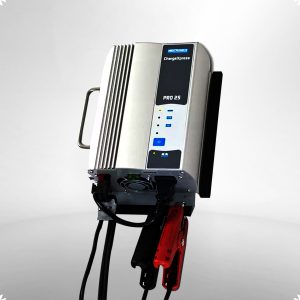

The ChargeXpress PRO 25-5 is the entry speciality charger and power supply. Charges all 12 volt batteries. It is smart as it recognizes charge acceptance, and allows you to support the battery of cars during service, maintenance routines and demonstrations.

The charging curves depends on the selected battery technology being Lead-Acid, AGM/Spiral and GEL.

MIDTRONICS ChargeXpress PRO is best described as a multi-tasking speciality charger and power supply unit. It is specifically designed to maintain battery state-of-charge and state-of-health during vehicle service, complex maintenance routines and for powering demonstrations

FeaturesBenefitsSpecificationsApplicationsCatalogueRequest a Quote
  • Simple, one button operation,
  • Precision charging - Mostly charges 85%, if SOC at faster rate,
  • Power supply for ECU Programming and maintenance,
  • Dedicated charge curves
  • One or two outputs
  • Field exchangable cables of 5m
  • Individual selectable charge routines for Flooded, AGM and GEL batteries (Delivering optimum efficient charging).

  • Safety features

  • Reverse polarity protection
  • Peak voltage protection mode
  • No sparks ON (dis)connect
  • Charge acceptance detection
  • Power factor correction
  • Input surge protection
  • Cable connection detection
  • Reduce operating cost
  • Quick Test - Saving TIME, ENERGY & MANPOWER
  • Maintain battery state-of-charge to avoid potential damage resulting from battery drain during vehicle service.
  • Return battery in optimum condition to ensure customer mobility and increase customer satisfaction
  • Increase Reliability
  • Universal mounting - Wherever needed
Parameter Specification
Rated capacity 20 to 250 Ah
Power requirements 230 V AC, 50 Hz & 16A
Display 1 Status LED and 4 Function LED’s
Cable length 5m, removable type
Charge curves "Lead-Acid/Ca-Ca (Flooded), AGM/Spiral, GEL, Program/In-Service mode"
Charging Amps 25 A
Protection index IP 23
Dimensions 205 x 165 x 100 mm
Weight 2.5 kg approx.
  • 12 volts Lead Acid/Ca-Ca (Flooded), AGM/Spiral and GEL batteries for Automotive, Agricultural and Marine.
