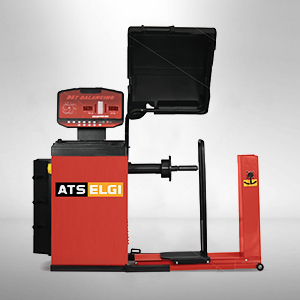

ATS ELGI TRUCK WHEEL BALANCER SP

Features & BenefitsSpecificationsCatalogueRequest a Quote
  • This machine can balance both car wheel and truck wheel.
  • Manual acquisition of diameter, distance and width.
  • Integrated pneumatic lift with the machine provides efficient and labour saving.
  • Machine can stop the wheel automatically in its unbalanced position.
  • Manual braking for easy application of weights.
  • Wheel guard ensures safety operation.
Parameter Range
Max. Rim diameter 10" - 24" inch
Max. Wheel weight 200 Kg
Max. Wheel diameter 1200 mm
Rim width 1.5" - 20" inch
Precision ± 1g (car) / ±10 (truck)
Motor Power 0.55kW
Power requirements 380V/3Ph
Rotation per minute 200rpm (car)/100 rpm (truck)
Balancing time 15s (truck) / 9s (car)
Second time mounting test ≤5g
