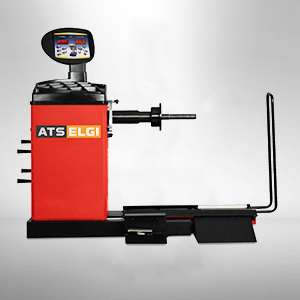

ATS ELGI TRUCK 46
Features & BenefitsSpecificationsCatalogueRequest a Quote
- This machine can balance both car wheel and truck wheel.
- Automatic acquisition of diameter, distance.
- Machine has function to stop the wheels on imbalance positions.
- Inverter technology gives different speed to the motor.
- Integrated pneumatic lift with the machine provides efficient and labour saving.
- Intelligent toggle of STD and ALS2 balance modes.
- Six o'clock stick on mode, with laser indicating line, fast and convenient.
| Parameter | Range |
|---|---|
| Rim diameter | 1" - 28" inch. |
| Max. Wheel weight | 200Kg. |
| Max. Wheel diameter | 1200mm. |
| Rim width | 2" - 20" inch. |
| Precision | ± 1g (car) / ±10g (truck). |
| Motor Power | 0.37kW. |
| Power requirements | 100/230V 1Ph. |
| Rotation per minute | 80rpm / 200rpm. |
| Balancing time | 9s (car)/20s (truck). |
| Second time mounting test | ≤5g. |
