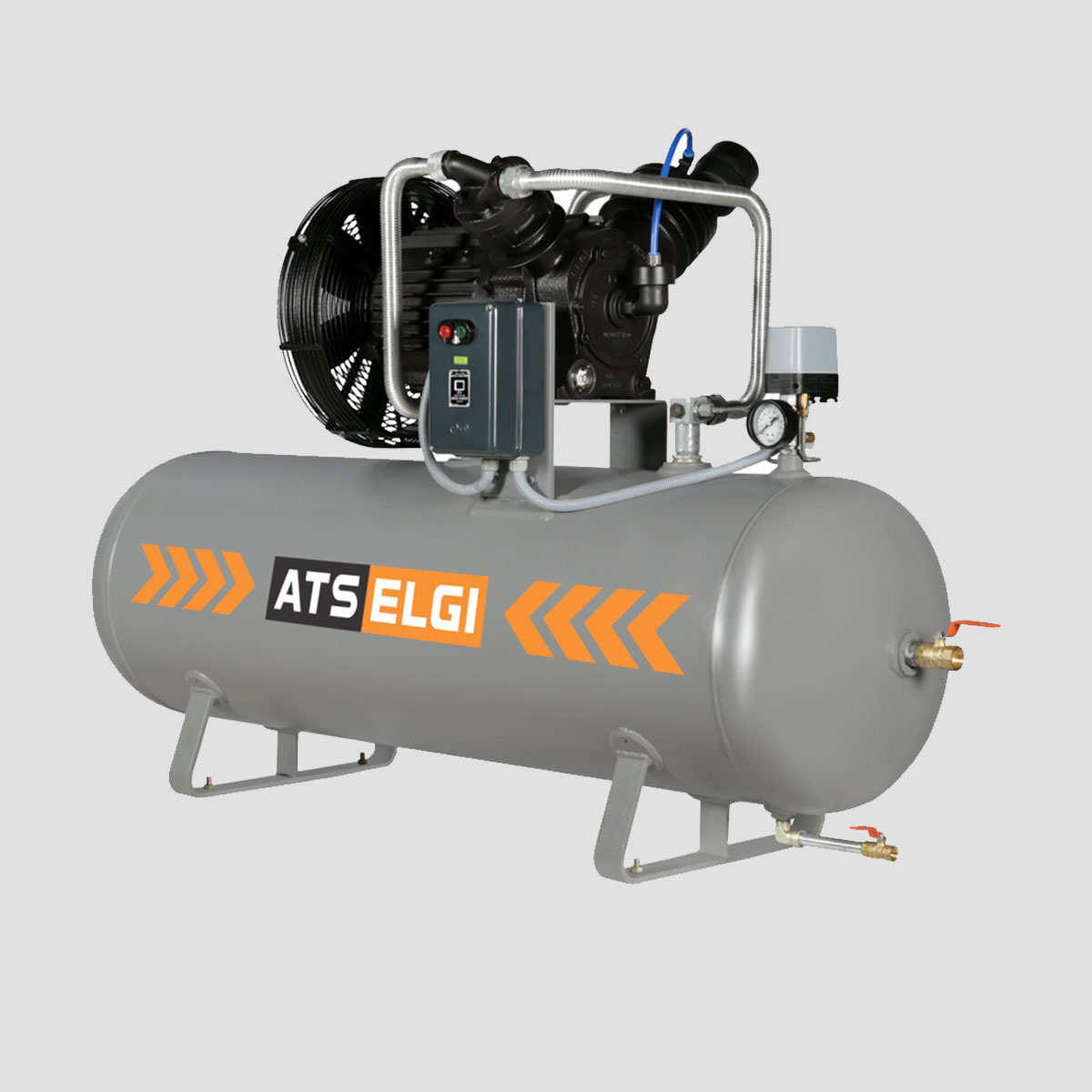

Air Compressor- LD & HD
ApplicationFeatures & BenefitsSpecificationsCatalogueRequest a Quote
- Spray painting.
- Pneumatic tools.
- Motor Cycle Shop.
- Automotive garages work shop.
- Tyre shop PV/CV.
- Wash Stations
- Unique integrated drive with compact top block design.
- Larger Aluminum inter& after coolers aiding 32% more heat transfer area.
- In Duplex model – Provision to run top block independently based on varied air demand – Demand based utilization.
- Low Noise Level.
- Less Oil Consumption 57% – compared to belt drive.
- Space saving 12% – compared to belt drive.
| Specifications | ||
|---|---|---|
| Model | ATS 05 RD 22 | ATS 07 RD 22 |
| Power | 5 hp/3.7 kW | 7.5 hp/5.6 kW |
| Compressor Speed | 960 rpm | 960 rpm |
| Max. Working Pressure | 12 bar / 175 psi | 12 bar / 175 psi |
| Free Air Delivery | 15.5 cfm | 24 cfm |
| Air Receiver | 220 | 220 |
| Over all Dimension (LxWxH) | 1,590 x 595 x 1,045 mm | 1,640 x 635 x 1,110 mm |
| Weight | 190 kg | 255 kg |
