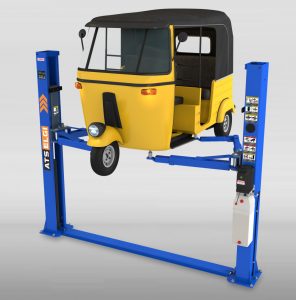

3W TWO POST HYDRAULIC LIFT

ATS ELGI introduce new 3W -Two Post Hydraulic Lift – 1.0T which is suitable for lifting 3W passenger & goods carrier including both IC and EV Vehicles for various applications. ATS ELGI lift is the best choice for 3W vehicles as it comes with exclusively designed lifting Arms to lift these vehicles in a safe way, facilitating easy vehicle services.

Model: 3W – Two Post Hydraulic Lift 1.0 T

ApplicationsFeatures & BenefitsSpecificationsCatalogueRequest a Quote
  • General service & Maintenance
  • Wheel service jobs
  • Differential unit Oil change
  • Electric Motor service - EV segment
  • Auxiliary battery service - EV segment
  • Sensor control Unit service jobs - EV segment
  • Exclusively designed Arms
  • Lifting capacity -1.0T
  • Telescopic arm pads for quick & easy vehicle loading
  • True Symmetric column design
  • Dual locking system
  • Door protective rubber pads included
  • Arms restraints for safety when vehicle lifted
Lifting Capacity 1000 Kgs
Lifting Time 55 sec
Min. Lifting Height 115 mm
Max. Lifting Height 1800 mm
Overall dimensions 3200 x 3320 x 2728 mm
Overall dimensions 3200 x 3320 x 2728 mm
Drive Through Clearance 2554 mm
Oil grade ATS ELGI Hoist Lube
Oil tank capacity 12 Liters
Motor Power* 2.2 KW, 3 HP, 3 PH
Power Supply 415 V / 50 Hz
Safety Mechanism Mechanical
