3W single column lift

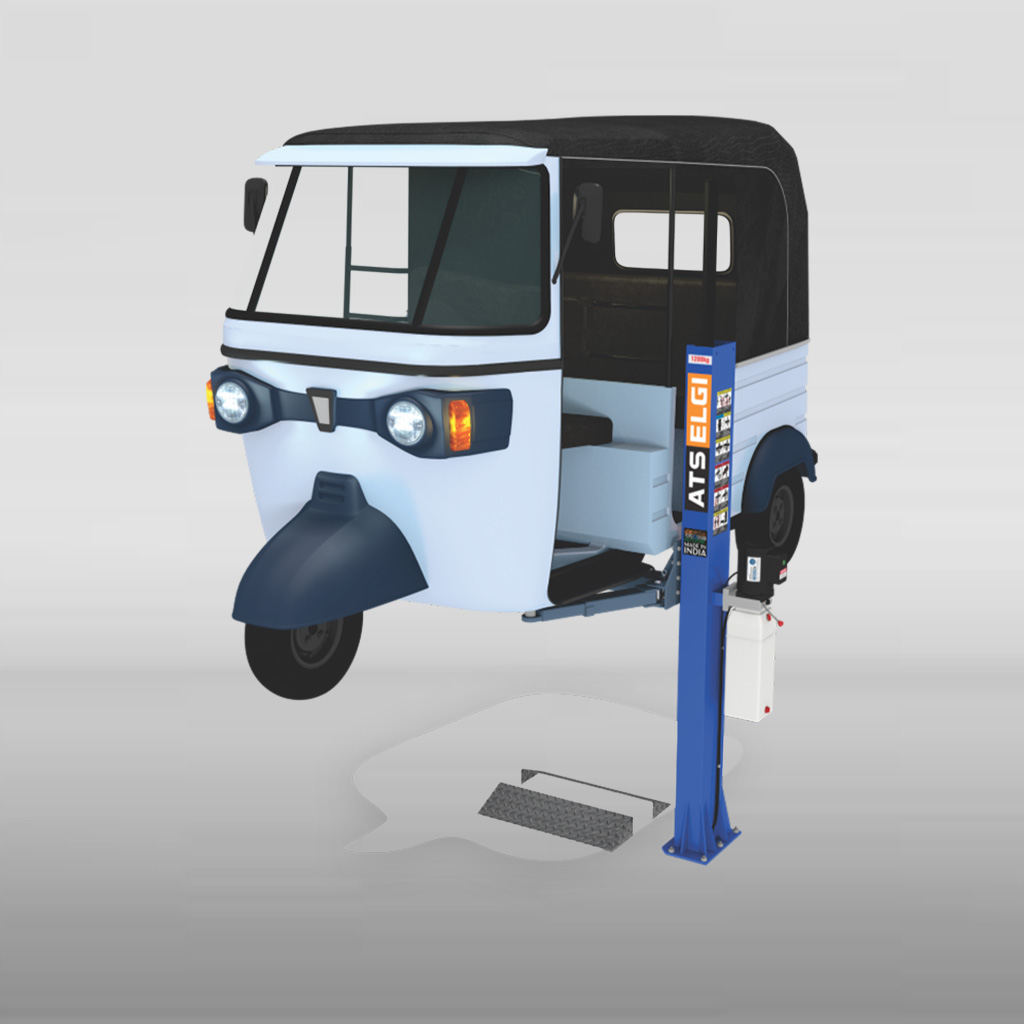

ATS ELGI introduce new 3W -Single Column Lift – 2.0T which is suitable for lifting 3W passenger & goods carrier including both IC and EV Vehicles for various applications. ATS ELGI lift is the best choice for 3W vehicles as it comes with exclusively designed lifting Arms to lift these vehicles in a safe way, facilitating easy vehicle services.

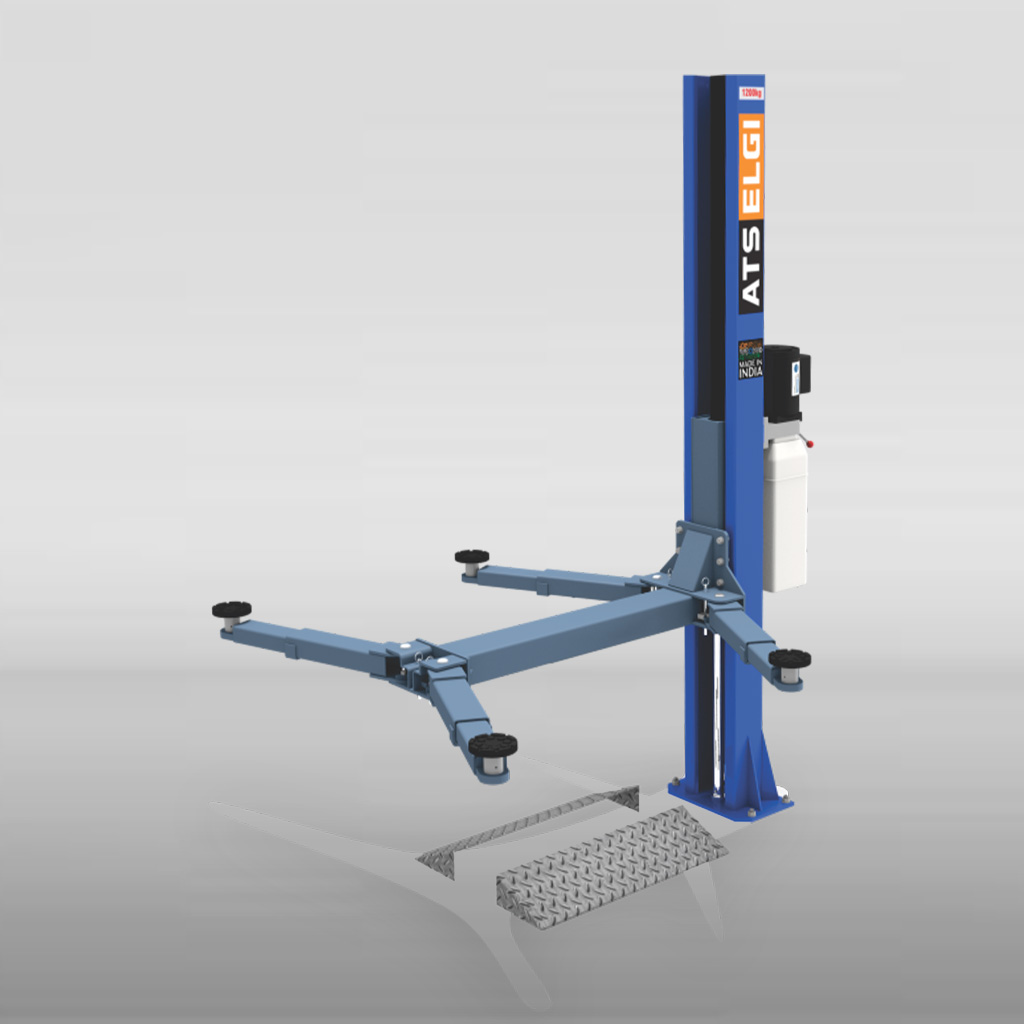

Model: 3W – Single Column Lift

Product FeaturesApplicationSpecificationsCatalogueRequest a Quote
  • Exclusively designed Arms
  • Lifting capacity -2.0T
  • Telescopic arm pads for quick & easy vehicle loading
  • Single locking system
  • Door protective rubber pads included
  • Arms restraints for safety when vehicle lifted

Suitable for: 3-Wheeler Passenger & Goods Carrier

  • General service & Maintenance
  • True symmetric column design
  • Wheel service jobs
  • Differential unit Oil change
  • Electric Motor service - EV segment
  • Auxiliary battery service - EV segment
  • Sensor control Unit service jobs - EV segment
Lifting Capacity (kg) 2000
Lifting Time (Secs) 55
Max. Lifting Height (mm) 1800
Min. Lifting Height (mm) 120
Overall dimensions (LxWxH)(mm) 2400 x 1950 x 2600
Oil grade ATS ELGI Hoist Lube
Oil tank capacity (Litres) 12
Motor Power* 2.2 KW, 3 HP, 3 PH
Power Supply 415 V / 50 Hz
Safety Mechanism Mechanical
